FJD ATS Precision Spraying System

Precision Spraying with Section and Rate Control

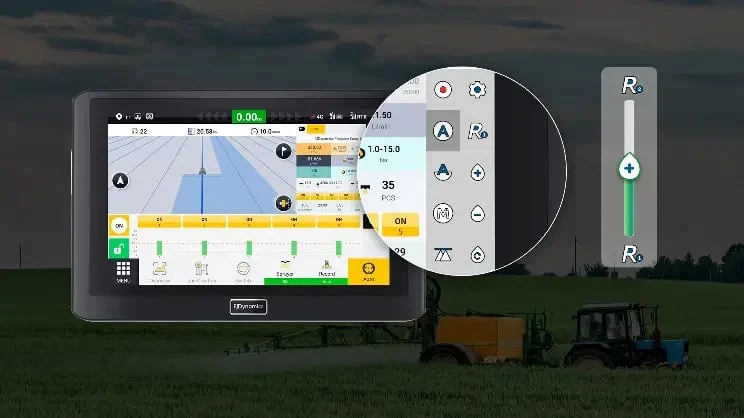

The FJD ATS is a precision spraying system that switches your sprayer's sections on and off by position and adjusts the flow to tractor speed. It reduces overlaps and skipped strips and helps every part of the field receive the target rate.

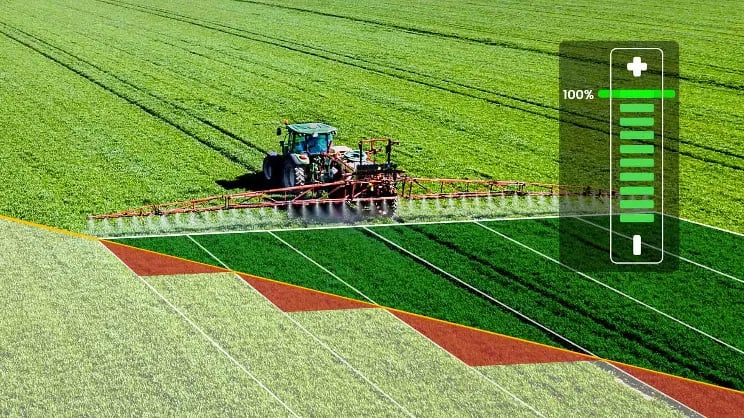

In conventional spraying, headlands, field edges and turns get sprayed twice while some strips are missed. The ATS runs on the FJDynamics auto-steering platform: using its RTK position it keeps a map of the area already sprayed and automatically shuts off the sections that reach it. Rate control adjusts the flow as the tractor speeds up or slows down, keeping the amount applied per unit area constant. The overlap ratio can be set separately for each section, so application can be matched to the label rate and crop sensitivity. The result is savings in chemicals and water, less risk of crop damage from double spraying, a lighter workload for the operator, and results from a less experienced driver that match those of a seasoned one. It can be used with ISOBUS-compatible sprayers from the same terminal. Contact us for details on section count and compatibility with your sprayer.

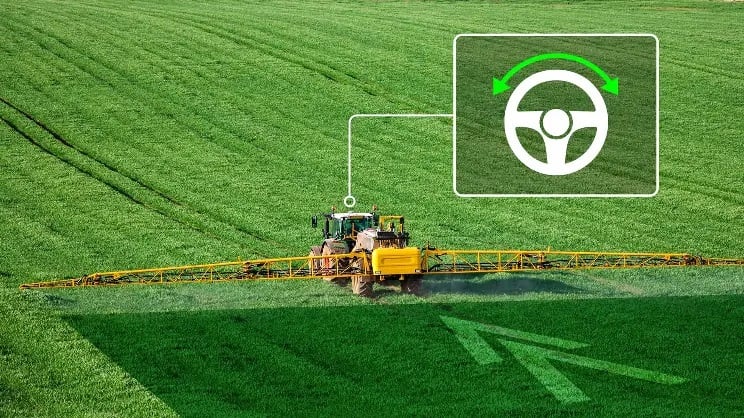

Steering and Spraying in One System

Built on the FJDynamics auto-steering platform, the ATS manages spraying by position while the tractor follows the planned line on its own. Operator fatigue drops, and chemical losses and crop damage are minimised compared with manual operation. For nozzle-by-nozzle PWM control, see the FJD ATS Ultra.

Application on Your Terms

Adjustable Overlap

Set the overlap ratio for each section individually and choose your own balance between coverage and chemical savings.

Consistent Application Rate

The system adjusts flow to tractor speed and the target rate, so every hectare receives the same amount even when speed changes.

Why Daze Tarım?

Daze Tarım is the official distributor of FJDynamics in Türkiye. We operate our own CORS-RTK network in the Marmara and Aegean regions, and customers who buy a steering system use it free of charge for the first year. Where the network does not reach, the FJD V1 portable base station gives you the same accuracy. We carry out installation, calibration and operator training on your own tractor, and provide spare parts and technical service.
