FJDynamicsSmart Agriculture Solutions
FJD APS Precision Seeding Control Kit
The FJD APS upgrades conventional seed drills with electric motor drive and high-precision positioning for a constant seeding rate at any speed and automatic shut-off at headlands.
Official DistributorBacked by Daze Tarım
Authorized Technical ServiceExpert technical support
±2%Rate Deviation
3–5%Seed Saving
2.5 cmRTK Accuracy
ISOBUSCompatibility
FJD APS Precision Seeding Control Kit overview
FJD APS
Consistent Seeding, Less Waste
The FJD APS equips conventional seed drills with electric motor drive and high-precision positioning, automatically adjusting the seeding rate regardless of ground speed. By sensing implement lift and lowering, it stops seed flow instantly at headlands and prevents double seeding. Compatible with any ISOBUS terminal, it turns your existing drill into a centimetre-precision machine, saving seed and time.
On conventional seed drills, the metering shaft is chain-driven from a ground wheel; when the wheel slips on wet ground or slopes the seeding rate drifts, and on headlands and overlapping areas seed is dropped twice in the same place. The APS solves both problems by handing the drive over to an electric motor. Motor speed is matched to tractor speed, so seed per unit area stays constant and rate deviation is held around ±2%. Rows shut off automatically over areas already seeded, which the manufacturer puts at 3–5% seed savings. Infrared seed sensors report blocked tubes and skips instantly, and a lift sensor stops seeding when the drill is raised. ISOBUS compatibility and integration with FJD steering let you manage guidance and seeding rate from a single terminal. Before installation we assess compatibility with your drill's make, row count and seed-tube diameter.
±2%
Actual seeding rate deviation
3–5%
Less seed waste
15 min
Saved per field switch
±2.5 cm
RTK row accuracy
Constant Seeding Rate
Direct Motor Drive, No Wheel Slip

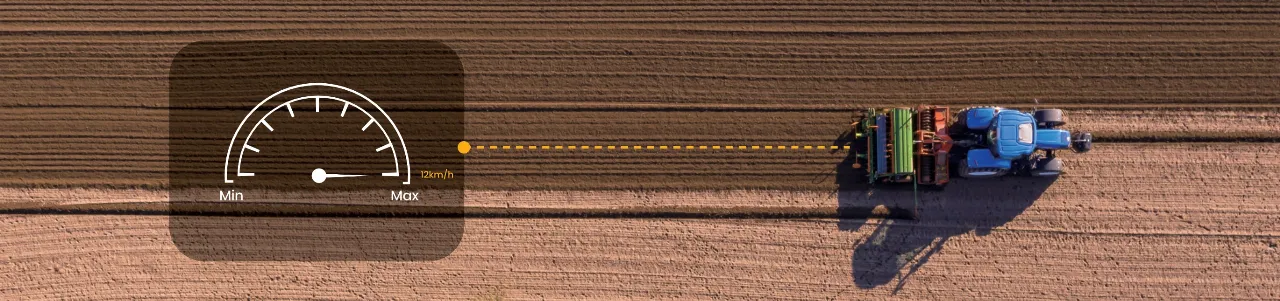

The seed metering shaft is driven directly by an electric motor, greatly reducing errors caused by wheel slip on wet ground or slopes. Matching motor speed to tractor speed keeps the seeding rate per area constant, with actual deviation within ±2%.
Automatic Operation Control
No More Double Seeding at Headlands

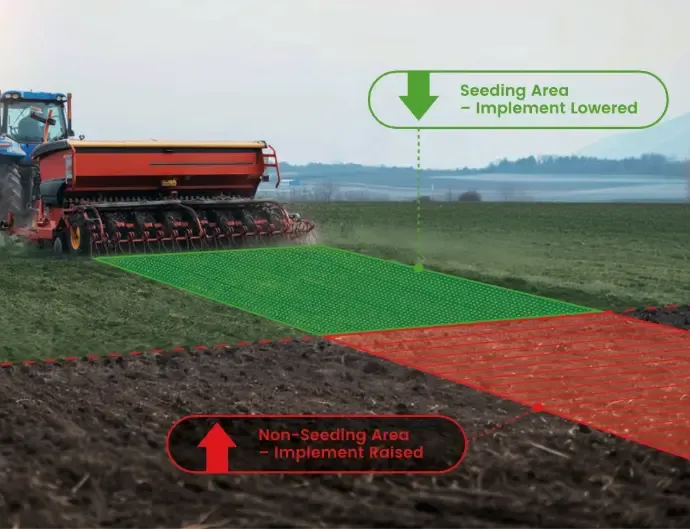

The system detects implement raising and lowering: seeding starts when the drill touches the ground and stops instantly when it is lifted. This prevents overlap at headlands and reduces seed waste by 3–5%.
Quick Rate Adjustment
Change the seeding rate on the terminal instantly, with no gear changes or lengthy calibration tests. Set up a new field in seconds and save up to 15 minutes with every switch.
Works with Auto Steering
Combined with FJD auto steering, both driving and seeding are automated with ±2.5 cm RTK precision for straight rows and zero overlap.
ISOBUS Compatible
Plugs directly into ISOBUS-compatible terminals from other brands for a cost-effective upgrade of existing machinery.
- Wheat and barley
- Winter rapeseed
- Alfalfa
- Spring and autumn seeding
Why Daze Tarım?
As the authorized FJDynamics dealer in Türkiye, Daze Tarım provides installation of the APS kit on your drill, user training, spare parts and technical service. With our own RTK-CORS network, you can seed with centimetre accuracy from day one. Contact us for drill compatibility and a quote.
FAQ
FJD APS Frequently Asked Questions
Which seed drills can APS be fitted to?
APS is designed to convert conventional seed drills to electric motor drive. Our team checks your machine's compatibility before installation.
Does it work with non-FJD terminals?
Yes. The kit connects directly to ISOBUS-compatible terminals.
Which crops is it suited to?
It is built for spring and autumn seeding of row crops such as wheat, barley, winter rapeseed and alfalfa.
Is the product available now?
The manufacturer lists APS as in field testing. Contact Daze Tarım for the current status.
