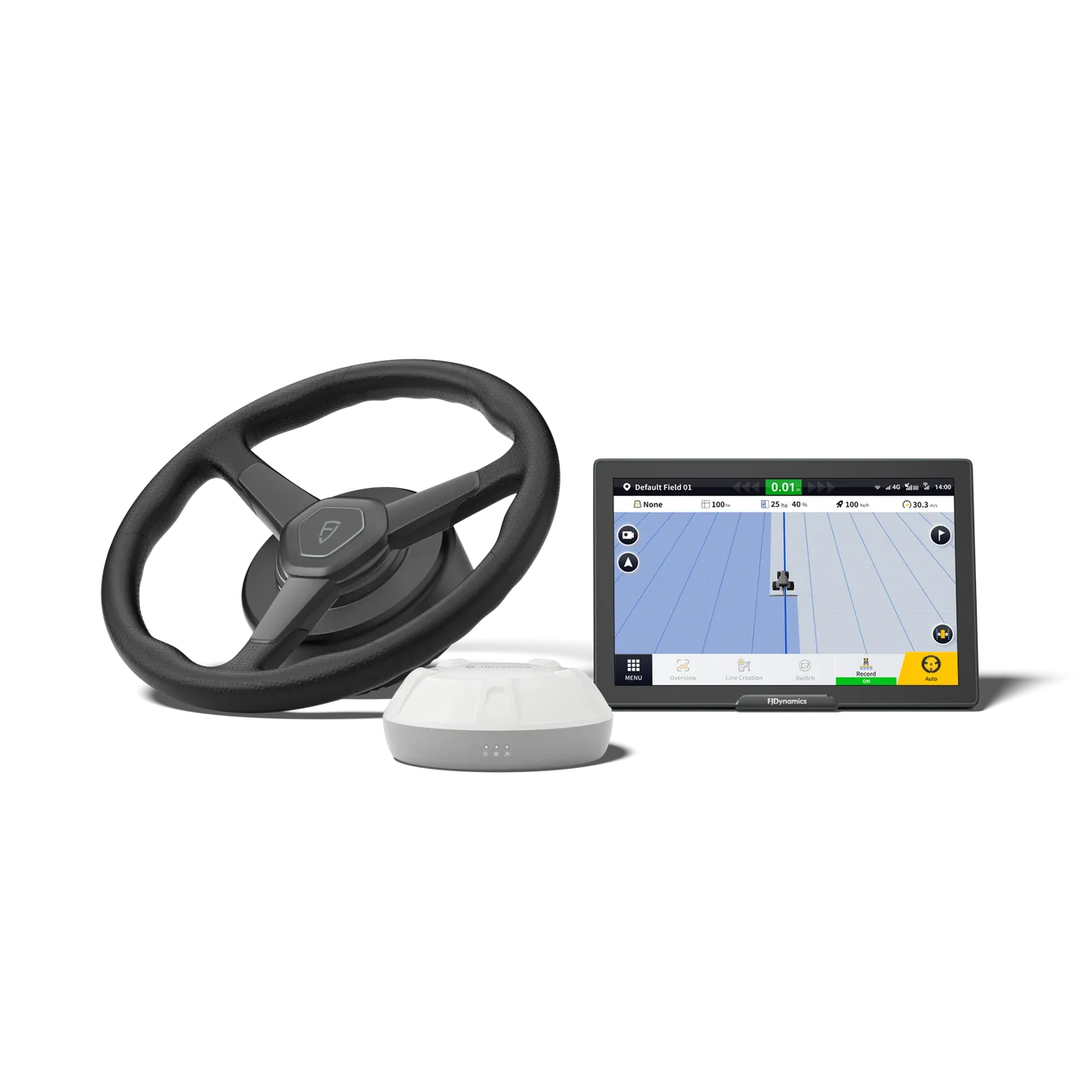

FJD AT2 Max Auto Steering System
The FJD AT2 Max is an auto-steering system with ±2.5 cm RTK accuracy, a 12.1-inch split-sc…
2.5 cm6-axis
FJDynamicsAuto Steering Systems
FJD AT2 Lite Auto Steering System
The FJD AT2 Lite is an entry-level auto steering system with ±2.5 cm RTK accuracy, wireless FJD Link connection, a tablet lighter than 0.8 kg and quick installation.
Official DistributorBacked by Daze Tarım
Authorized Technical ServiceExpert technical support
2.5 cmRTK Accuracy
WirelessConnection
<0.8 kgTablet
FastInstallation
FJD AT2 Lite Auto Steering System overview
FJD AT2 Lite
The Easiest Way to Start Auto Steering
Built on the proven performance of the AT2 series, the FJD AT2 Lite offers ±2.5 cm RTK accuracy, an intuitive interface, stable steering performance and basic ISOBUS implement control. Its wireless connection reduces cabling and simplifies installation and use, making it the ideal choice for first-time users.
The AT2 Lite is designed for farms trying auto steering for the first time or equipping several tractors at an affordable cost. A wireless FJD Link connection replaces the cable between steering motor and terminal, shortening installation and making it easy to move the tablet between tractors. The Android tablet weighs under 0.8 kg and has a clean interface; around 20 guidance patterns, including straight, curve and pivot, cover jobs from seeding to spraying. Steering speeds down to 0.15 km/h hold the line in work such as transplanting and slow tillage. Smart Turn-In brings the tractor onto the line by itself at entry angles of up to 90°. It supports RTK, PPP and ALS correction modes; for RTK you can use our own CORS network or a base station. Basic ISOBUS support lets compatible implements be monitored from the same screen. As your needs grow, you can move up to the AT2 or AT2 Max.
±2.5 cm
RTK line accuracy
0.15 km/h
Minimum steering speed
~20
Guidance patterns
<0.8 kg
Tablet weight
Easy to Use
A Simple Interface, No Training Needed

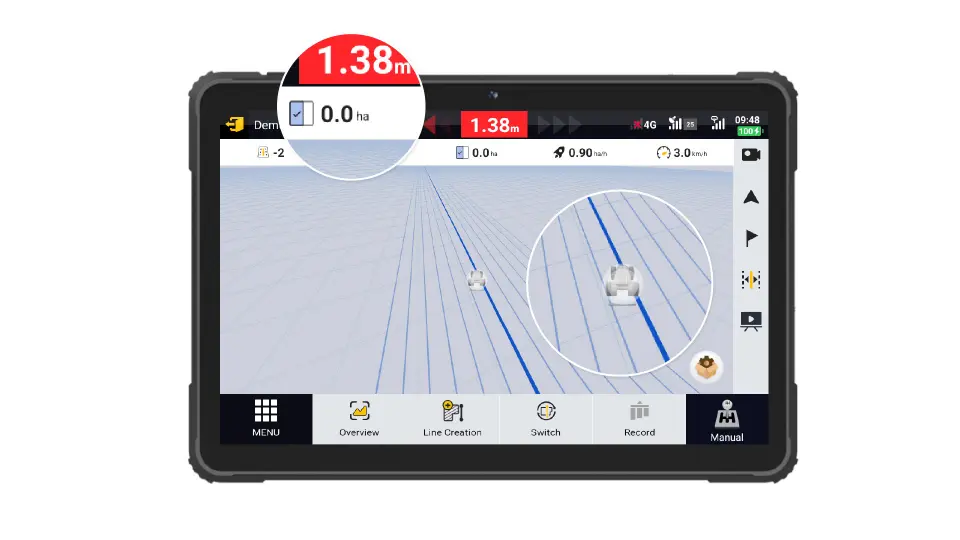

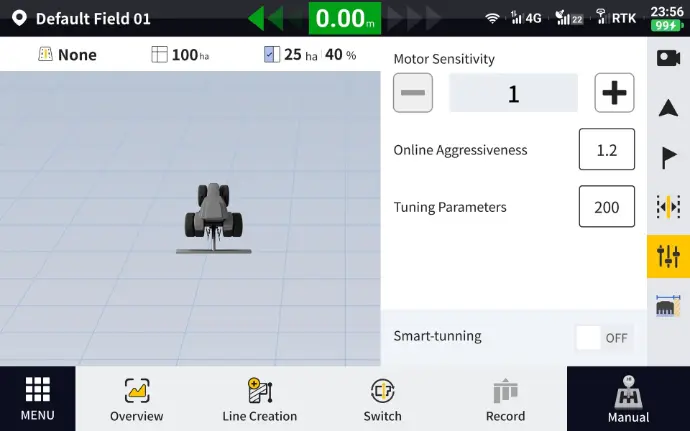

AT2 Lite supports about 20 guidance patterns including Offset Line, Tramline, AccessPath and Single Line. One-touch activation, automatic parameter tuning and quick pattern switching let you start working right away.
Precision at Low Speed
Steers automatically at speeds as low as 0.15 km/h and stays stable on slopes and sandy fields.
Smart Turn-In
The tractor enters the guidance line smoothly at angles up to 90° for seamless line changes.
Basic ISOBUS Control
Control compatible implements from the same screen.
FJD Link
Stable Wireless Connection
The new AT2 Lite uses the FJD Link module for a stable wireless link between the tablet and the GNSS receiver. Signal latency can be as low as 10 ms, and the system stays stable even 1 metre from a strong interference source.
Lightweight, Fast Installation

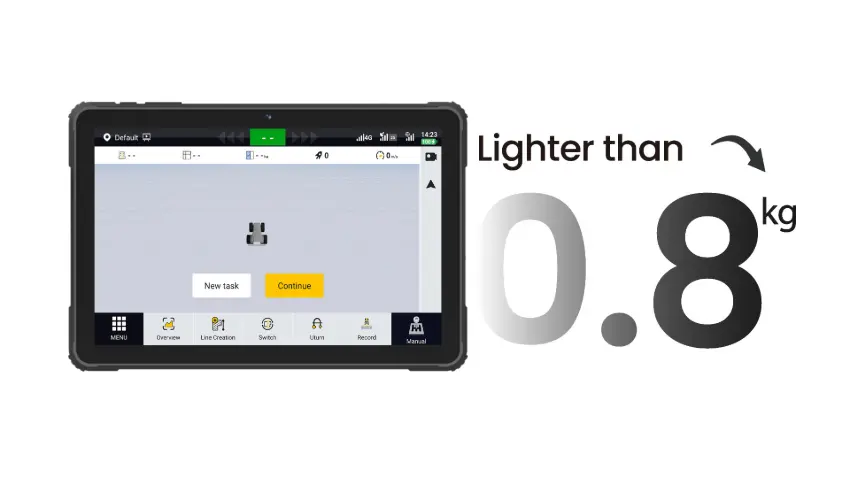

A Rugged Tablet Under 0.8 kg
The Android-based rugged tablet is about 40% lighter than conventional devices. With simplified cabling, the system connects to the machine through only one or two ports, so you spend time working instead of installing.
Reliable Performance
Keeps Working Even When the Signal Drops
Smart Alerts
Timely warnings when approaching obstacles or field boundaries.

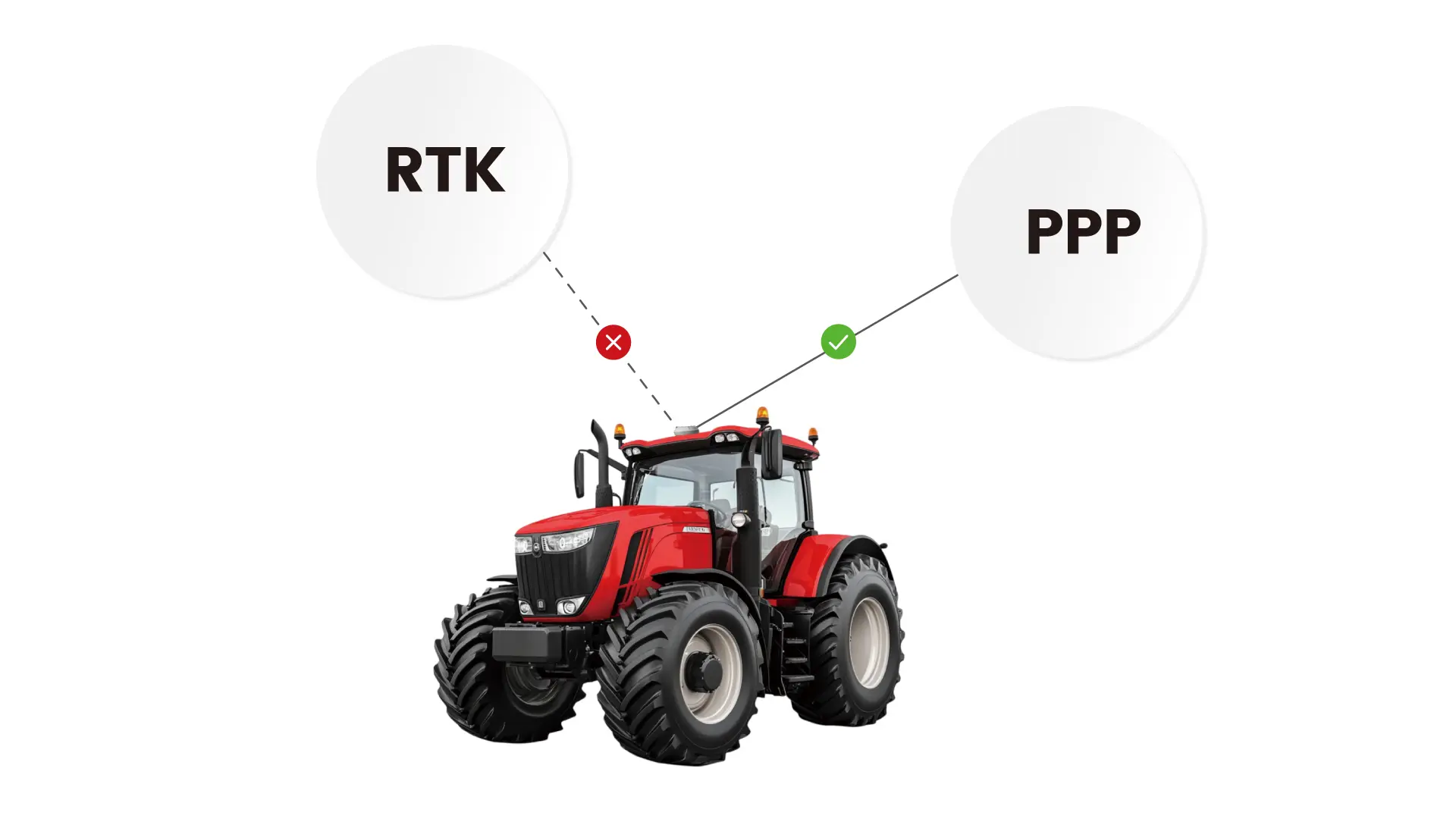

ALS and PPP
If RTK drops, ALS keeps navigation for 20 minutes, then switches to PPP and returns to RTK automatically.
Manual Override
Auto steering disengages as soon as the operator takes the wheel.
- Planting and seeding
- Tillage
- Fertilizing
- Spraying
Why Daze Tarım?
As the authorized FJDynamics dealer in Türkiye, Daze Tarım provides installation, user training, spare parts and technical service for the AT2 Lite. With our own RTK-CORS network, you can use your system with centimetre accuracy from day one. Contact us for pricing and installation.
FAQ
FJD AT2 Lite Frequently Asked Questions
What is the difference between AT2 Lite and AT2?
AT2 Lite is the entry-level model focused on core functions, with wireless FJD Link, a lighter tablet and simplified cabling. It offers the same ±2.5 cm RTK accuracy.
Which tractors is it compatible with?
It works with many tractor brands and models. Contact Daze Tarım to check your machine.
What happens if the RTK signal is lost?
ALS keeps navigation running for 20 minutes, then the system switches to PPP and returns to RTK automatically when available.
How long does installation take?
Thanks to minimal cabling, installation is much faster than conventional systems; our team handles it.
